Deep learning neural networks identify cells in complex clusters with more than 99% accuracy.
CELL COUNTING IN THE AI ERA
Maximum performance, minimum operating cost

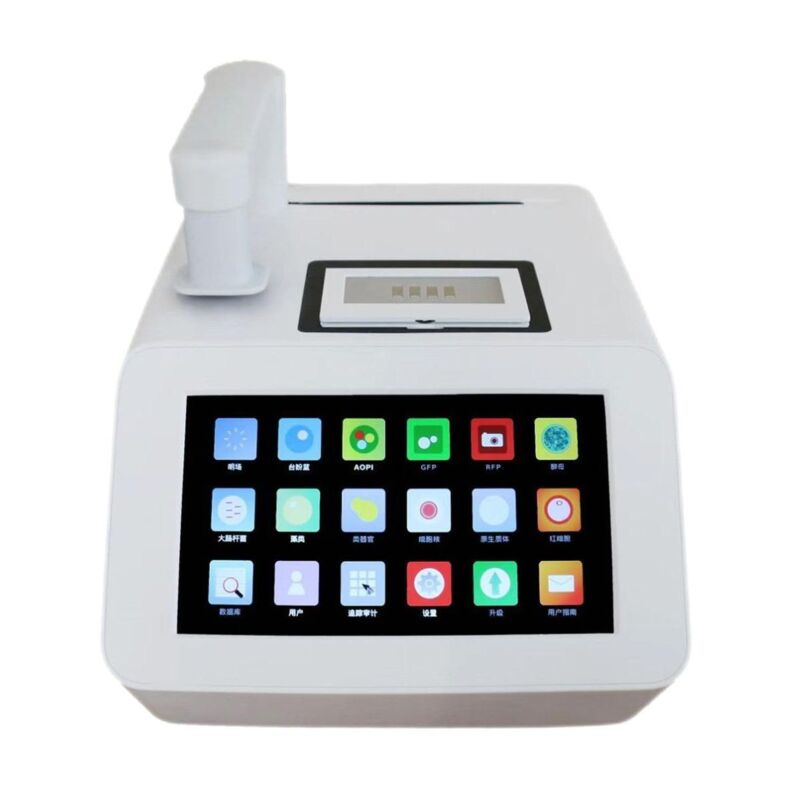

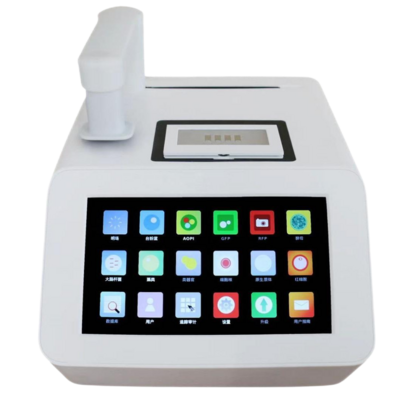

The Halo Counter offers precise cell counts for mammalian cells, but also small cells like algae, yeast and many bacteria. Up to 8 samples can be processed at the same time. As an absolute novelty, with the optional Halo BOX you can count adherent cells and run cellular assays in microtiter plates. And all that for an amazing price!
With its innovative sample stage technology, the Halo Counter does not require plastic consumables, reducing the lab's cost and plastic waste significantly. AI based software modules provide precise and reproducible results for various cell types and assays ranging from simple live/dead counts to expression profiling.
For regulated environments a CFR21part11 software option is available.
For your individual configuration of the Halo Counter and a test option, please contact us.
AI Algorythm Included
Multi-Channel Fluorescence
High-Sensitivity AP, PI, GFP, mCherry imaging for viability and transfection assays.
Versatile Modules
Adherent cell assay: GFP/RFP transfection efficiency, cell confluence
Regulatory Compliance
Secure audit trails, multi-level user access control electronic signatures and data integrity.

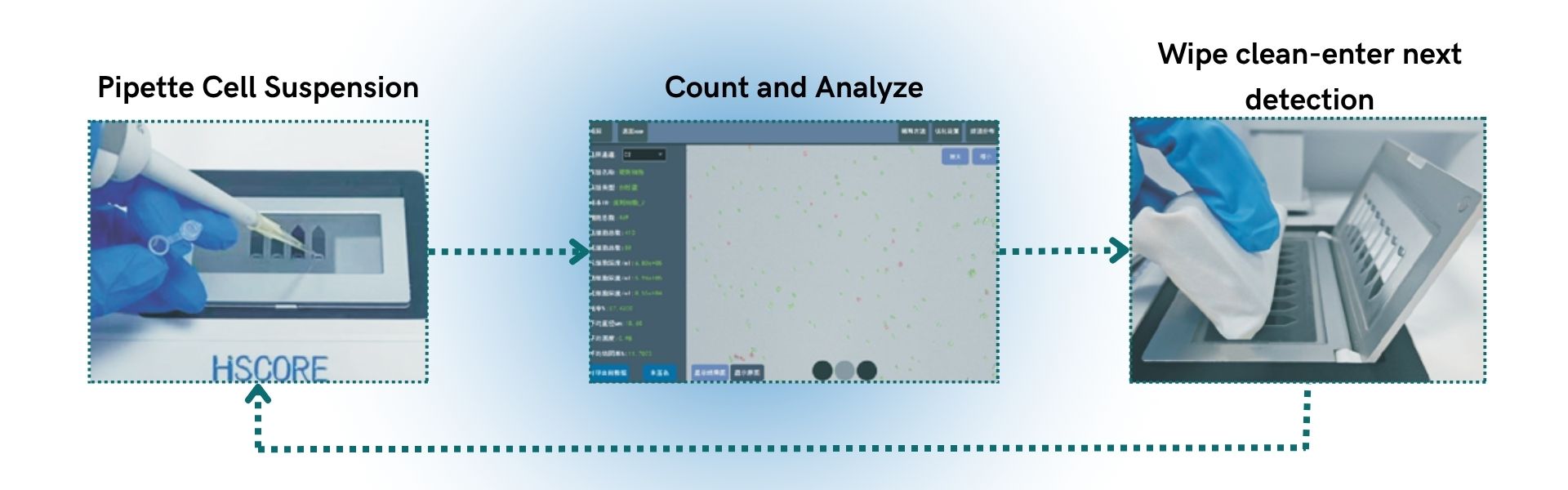

How do we avoid plastic consumables?
Sample and dye are directly applied to the Halo Counter's glass sample carrier, and wiped clean with a tissue after counting, ready for the next round.
Applications
Assay Types
- Trypan Blue viability
- AOPI viability
- GFP assays
- mCherry assays
Sample Types
- Primary cell
- PBMCs
- NK cells
- T-cells
- Stem cells
- Small cells
- Adherent cell counting and assays
- Algae
- Platelets
- Yeast
- E.coli
- Protozoa
- And many others...
Specifications
| Halo Counter FL | |
| Optics Channel | Bright Field, Trypan Blue. AOPI, GFP, mCherry |
| Diameter range | 0.8~400um |
| Concentration Range | 1x10^3 ~3x10^7 cells/micro meter |
| Objectives | 4X or 4X&10X |
| Excitation channel | 488nm, 587nm LED |
| Counting channels | 2, 4 or 8 |
| Adherent cell option | Halo BOX adaptor |
| CFR21part11 Compliance | Optional |
