HIGH-CONTENT LIVE CELL ANALYSIS AND CELLULAR ASSAYS
The EOS systems integrate high-performance, high-precision hardware with modern day control software to efficiently capture cellular changes inside or outside the incubator. It captures high-resolution images and records data for long periods, and allows to observe and quantify biological changes. It enables meaningful insights into gene expression, protein synthesis, and signal transduction. It is compatible with 6-384 well plates and various culture vessels and offers precise imaging support whether it's observing 2D cell cultures or analyzing organoid development. And it offers all that at an amazing price point.
Streamlined Operational Workflow: The intuitive interface with step-by-step guided experiment setups and preset algorithms makes it easy to use for everyone in the lab.
Simultaneous Imaging & Computation: The software processes images and runs algorithms at the same time, delivering real-time, dynamically adjustable analytical results, charts, and time lapse videos.
Intelligent Automation: The EOS employs advanced algorithms for autofocus and exposure adaptation, and hence eliminates image shaking, defocusing, or position shifts during long-term imaging.
Advanced Cell Counting & Segmentation: The automated segmentation process not only makes the setup extra easy, it also eliminates errors caused by cell overlap, complex morphology, or background noise.

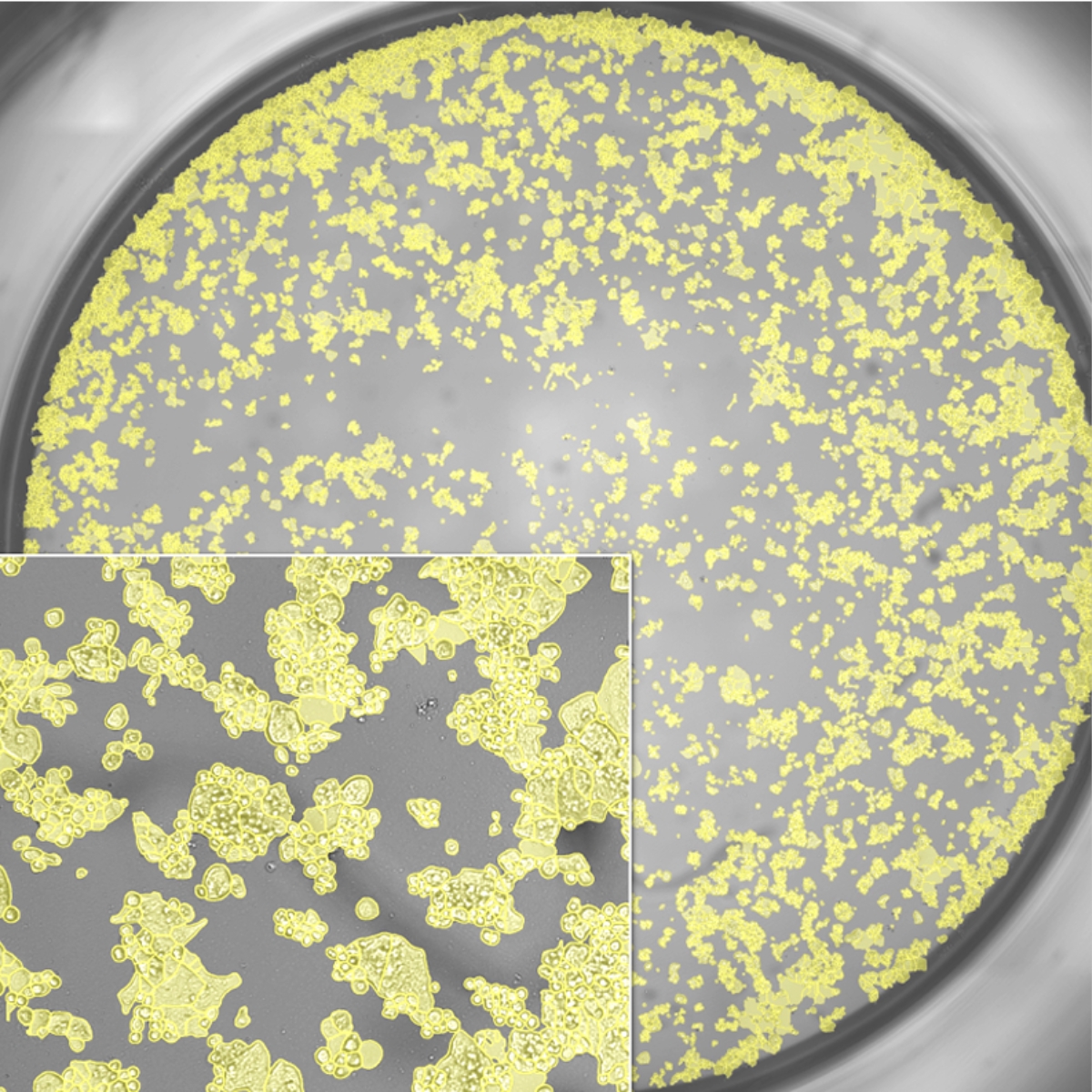

Whole well imaging capacity: the EOS´ advanced optical system offers the option for whole well imaging in various plate formats so not a single cell remains unseen and maximum precision is achieved.
Applications
Analytical applications
- Organoids: cultivation and observation of organoids, monochrome and multi-color
fluorescence analysis of organoids, monoclonal observation, and 3D tumor spheroids. - Cell viability analysis: cell counting, cell proliferation, cell cycle, apoptosis, and
neuronal cell analysis. - Gene expression: transfection efficiency and reporter genes.
- Cell migration and invasion: transwell assays, cell migration, scratch assays, and
chemotaxis. - Cell functions: immune cell clustering, immune cell cytotoxicity, antibody
internalization, phagocytosis, and angiogenesis.
Specifications
|
Item |
Eos1 | Eos6 |
| Imaging model | Brightfield, Phasecontrast, Fluorescence,Z-stack, Wholewell imaging | Brightfield, Phasecontrast, Fluorescence, Z-stack, Wholewell imaging |
| Objective | four position turret with 4X, 10X, 20X (standard) | four position turret with 4X, 10X, 20X (standard) |
| 10XPH, 20PH and 40X (option) | 10XPH, 20PH and 40X (option) | |
| Fluorescence | RGB + NIR | RGB + NIR |
| Excited LED | 365nm, 500nm, 575nm, 645nm | 365nm, 500nm, 575nm, 645nm |
| Emission light | 455nm, 520nm, 595nm, 705nm | 455nm, 520nm, 595nm, 705nm |
| Bright field LED | 635nm | 635nm |
| Phase contrast | electronic changing device | electronic changing device |
| Automated XY travel | X 86mm, Y 115mm, | X 86mm, Y 115mm, |
| Automated Z travel | 10mm | 10mm |
| Focus and exposure | automatic | automatic |
| Cmos | 5M(2448X2048) | 5M(2448X2048) |
| Vessel | one | six |
| Dimension (DXWXH) | 360mmX410mmX355mm | 490mmX450mmX355mm |
