THE NOVEL MICROPLATE READER
Maximizing functionality at a lower cost.

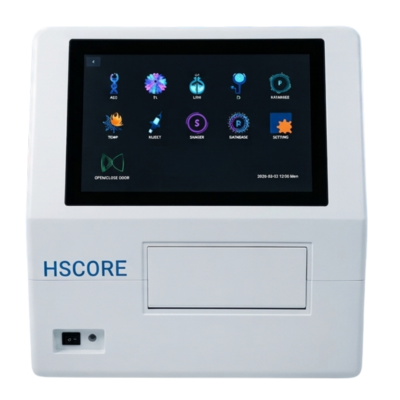

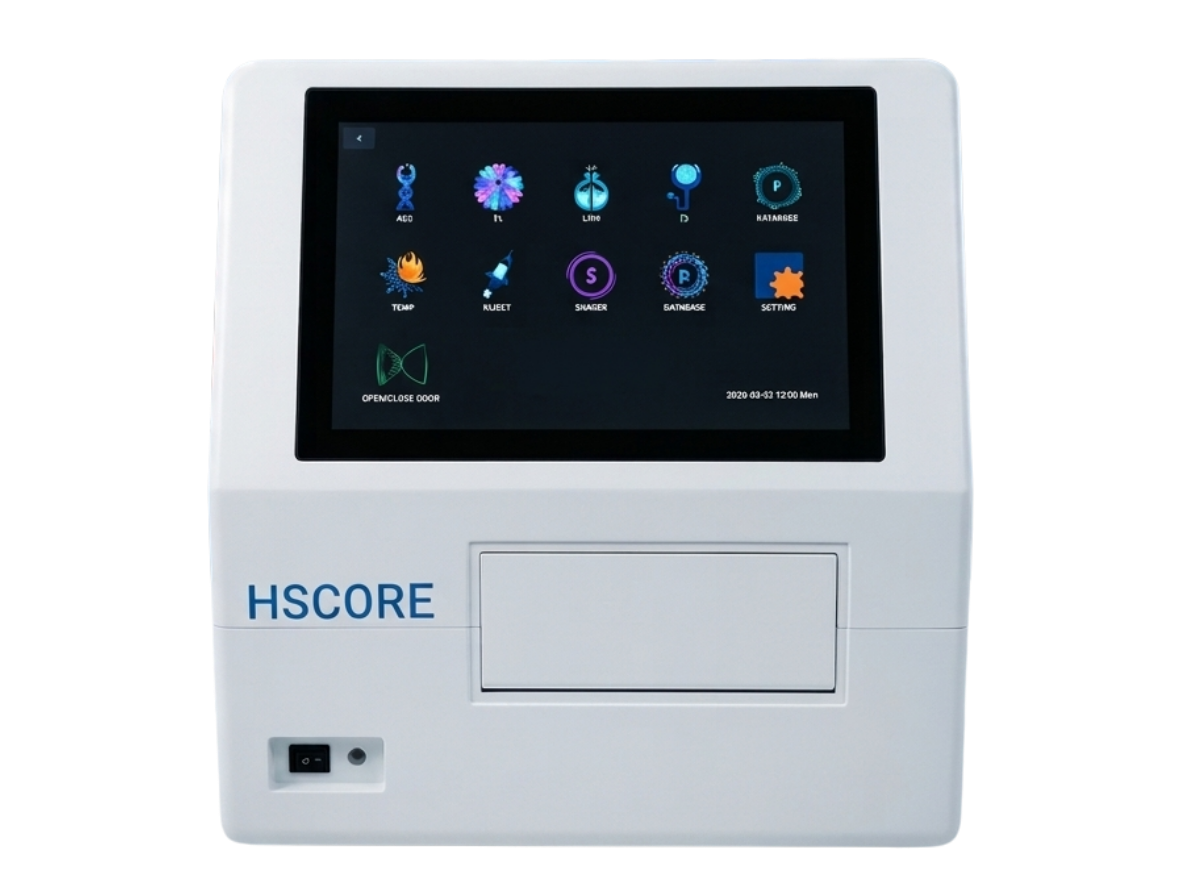

The Aura2 Multimode Microplate Reader delivers high-performance detection sensitivity, stability, and data analysis for research and industrial labs. Its modular, building-block design lets you configure the system to your specific needs, maximizing functionality while lowering costs. It supports absorbance, fluorescence, luminescence, fluorescence polarization, and time-resolved fluorescence.
Versatile Multimode Detection: five core modes (Absorbance, Fluorescence, Luminescence, FP, and TRF) with top-tier performance optimized for each independent application.
Modular Configuration: Building-block architecture allows flexible upgrades based on specific detection needs, optimizing your budget.
Optical Twin Technology: Combines a high-efficiency four-monochromator system with high-sensitivity filters to maximize dynamic range and eliminate background interference.
Adaptive Energy System: Integrates a 20W xenon lamp and an ultra-sensitive PMT detector that automatically adjusts power levels, significantly reducing background noise while increasing sensitivity.
Applications
.
Specifications
Optical & Detection Systems
Absorbance
- Light source: Xenon flash lamp
- Wavelength Selection: Monochromator (Grating).
- Wavelength Range: 200 nm – 1000 nm (continuously adjustable in 1 nm increments).
- Measurement Range: 0.000 – 4.000 OD.
- Resolution: 0.0001 OD.
- Linearity: ≤ 1.0% (from 0 to 2.0 OD);
Fluorescence Intensity - Optional/Model Dependent
- Sensitivity:
- Filter mode: Fluorescein 0.25 pM (25 amol/well, 100 μL, 384-well plate) —— Top detection
- Filter mode: Fluorescein 1 pM (100 amol/well, 100 μL, 384-well plate) —— Bottom detection
Luminescence - Optional/Model Dependent
- Sensitivity: 35 amol ATP (Glow type), 35 μL, 384-well plate
