Multiplexed imaging and spatial analysis used to be complex, requiring specialized expertise and bulky instrumentation.
Tissue consists of heterogenous cell types, each with diverse functions and functional states, arranged spatially in a way that impacts patient health status. Resolving this complexity has been challenged by:
Whether conducting multiplexed tissue imaging on slides or high-throughput analysis across cohorts, Orion enables rapid, high-quality spatial biology insights without the need for spectral unmixing. Leveraging its proprietary multi-epitope detection technology, Orion combines speed, simplicity, and scalability—empowering researchers with unparalleled spatial resolution and flexibility for biomarker discovery.

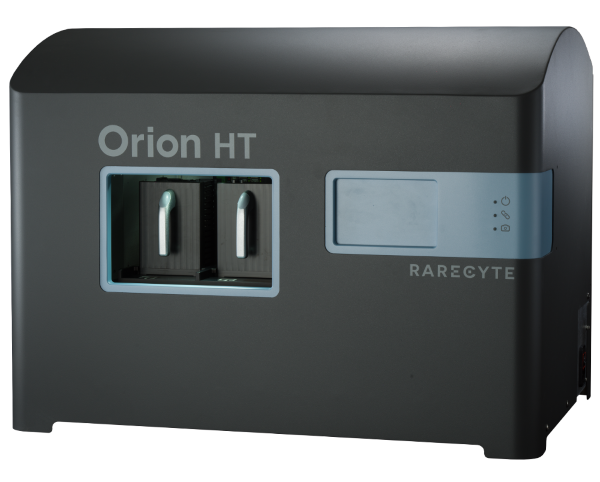

Orion HT
Orion HT provides automated, high-capacity spatial proteomics with 24/7 hands-off operation, processing up to 30 slides. Its single-round, 20-channel imaging delivers high-plex biomarker data with high-throughput, panel flexibility, and data quality required for clinical and translational research.
If yours don't happen to be here, feel free to contact us.
Sample compatibility: IF, IHC, H&E
Scan speed: 75 mins per cm2 at 20x
Excitation Lasers: 402 nm - 808 nm
Emission: Tunable from 425 - 894 nm
Slide compatibility: 1” x 3” x 1 mm, 25 mm x 75 mm x 1 mm
Slide capacity: 2 slides
Slide loading: Manual
Load repeatability: +/- 5.0 μm
Focus: Image-based Autofocus
Objectives: 4X 0.2 NA, 20X 0.8 NA
Camera: sCMOS; 2048 x 2048 pixels, 6.5 μm pixel size, 95% QE. 1.0 electron read noise
Safety: Class I LASER Product
File format: 16-bit OME .TIFF
